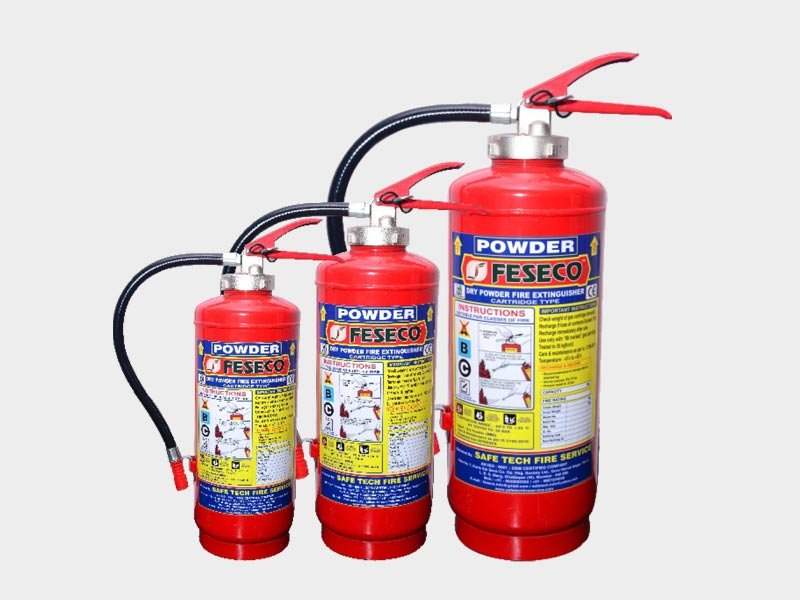

Dry Powder Cartridge Type

Dry Powder Cartridge Type

Dry Powder Cartridge Type

Stored Pressure 1kg, 2kg, 4kg, 6kg and 9kg

Sodium Bicarbonate based dry chemical powder Suitable for 'b', 'c' classes of fire involving materials like petrochemical products, paints,resins, pigments, Vamish, gases in the compressed form like oxygen, acetylene, LPG & CNG

SUITABLE FOR CLASSES OF FIRE

Technical Specification

BC cartridge Type Fire Extinguisher

Model FSP 4 FCBC 6 FCBC 9
Capacity 4 Kg 6 Kg 9 Kg
Confirming IS No. 15683 15683 15683
Fire Rating 2A, 21B 34B 89B
Operating Tempreture -20°c to + 55°c -20°c to + 55°c -20°c to + 55°c
Min. Jet Length ( in Mtrs.) 2 Mtrs. 2 Mtrs. 2 Mtrs.
Discharge Percentage Min. 85% 85% 85%
Discharge Time Min. 13 Sec. 13 Sec. 13 Sec.
Charge Pressure 15Kgf/cm² 15Kgf/cm² 15Kgf/cm²
Test Pressure 35Kgf/cm² 35Kgf/cm² 35Kgf/cm²
Operating Valves Squeeze Grip Type Squeeze Grip Type Squeeze Grip Type
Extinguisher Media Dry Powder 14609/4308 Dry Powder 14609/4308 Dry Powder 14609/4308
Explant CO2 CO2 CO2
Anti Corrosive Treatment Phosphating (7 Tanks) Phosphating (7 Tanks) Phosphating (7 Tanks)
Painting Epoxy Polyster Pow. Coat. Epoxy Polyster Pow. Coat. Epoxy Polyster Pow. Coat.
Tare Weight 2.3 KGS 4.6 KGS 7.3 KGS
Gross Weight 6.3 KGS 10.6KGS 16.3 KGS

Introduction

When it comes to safeguarding your home, office, or industrial space, trust Feseco Fire Protection's Dry Powder Cartridge Type Fire Extinguisher. Engineered for exceptional performance, this fire extinguisher is designed to tackle Class A (combustible solids), Class B (flammable liquids), and Class C (flammable gases) fires with unmatched reliability.

Whether you're equipping a small business or a large facility, our extinguisher offers a dependable solution to protect lives and property.


Why Choose Our Dry Powder Cartridge Type Fire Extinguisher?

  1. Superior Fire Suppression
    The advanced dry powder formula ensures rapid extinguishing of fires by interrupting the chemical reactions of combustion.

  2. Versatility
    Suitable for a wide range of applications, including industrial facilities, commercial buildings, residential spaces, and more.

  3. Durable and Easy to Use
    Designed with a robust build and intuitive operation, our extinguisher is reliable in critical moments.

  4. Environmentally Friendly
    Non-toxic and eco-conscious, ensuring minimal environmental impact while keeping you safe.


Key Features

  • Fire Class Compatibility: Effectively handles Class A, B, and C fires.
  • Cartridge-Based Mechanism: Ensures long-lasting pressure and reliability.
  • Corrosion-Resistant Design: Built to withstand tough environments.
  • Simple Maintenance: Easy-to-replace cartridges for hassle-free upkeep.
  • Capacity Options: Available in multiple sizes to suit your specific needs.

Applications

  • Industrial Facilities: Factories, warehouses, and workshops.
  • Commercial Spaces: Offices, malls, and retail stores.
  • Residential Properties: Homes and apartments.
  • Transportation: Vehicles, ships, and aviation sectors.
