Stored Pressure 1kg, 2kg, 4kg, 6kg and 9kg
Monoammonium Phosphate based dry chemical powder Suitable for 'a','b' & 'c' classes of fire involving materials like paper, wood, cotton, petrochemical products, paints, resins, pigments, Vamish, gases in the compressed from like oxygen, acetylene, LPG & CNG
SUITABLE FOR CLASSES OF FIRE

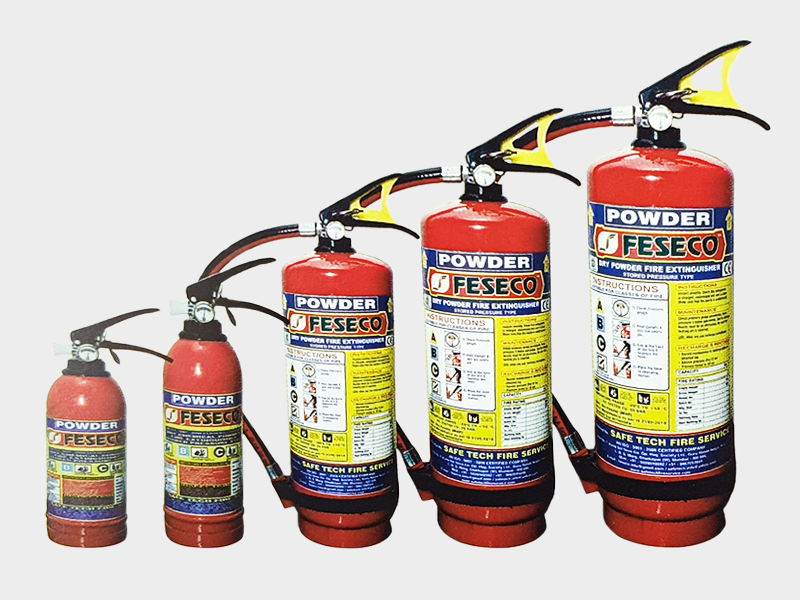

ABC Stored Pressure Type Fire Extinguisher
Model | RSP1 | RSP2 | RSP4 | RSP6 | RSP9 |
Capacity | 1 Kg | 2 Kg | 4 Kg | 6 Kg | 9 Kg |
Confirming IS No. | 15683 | 15683 | 15683 | 15683 | 15683 |
Fire Rating | 1A, 8B | 1A, 13B | 2A, 21B | 3A, 34B | 4A, 89B |
Operating Tempreture | -20°c to + 55°c | -20°c to + 55°c | -20°c to + 55°c | ,-20°c to + 55°c | -20°c to + 55°c |
Min. Jet Length ( in Mtrs.) | 2 Mtrs. | 2 Mtrs. | 2 Mtrs. | 2 Mtrs. | 2 Mtrs. |
Discharge Percentage Min. | 85% | 85% | 85% | 85% | 85% |
Discharge Time Min. | 8 Sec. | 13 Sec. | 13 Sec. | 13 Sec. | 13 Sec. |
Charge Pressure | 15Kgf/cm² | 15Kgf/cm² | 15Kgf/cm² | 15Kgf/cm² | 15Kgf/cm² |
Test Pressure | 35Kgf/cm² | 35Kgf/cm² | 35Kgf/cm² | 35Kgf/cm² | 35Kgf/cm² |
Burst Pressure (Min) | 55 Bar | 55 Bar | 55 Bar | 55 Bar | 55 Bar |
Operating Valves | Squeeze Grip Type | Squeeze Grip Type | Squeeze Grip Type | Squeeze Grip Type | Squeeze Grip Type |
Extinguisher Media | Dry Powder 14609/4308 | Dry Powder 14609/4308 | Dry Powder 14609/4308 | Dry Powder 14609/4308 | Dry Powder 14609/4308 |
Expllant | Dry Nitrogen | Dry Nitrogen | Dry Nitrogen | Dry Nitrogen | Dry Nitrogen |
Anti Corrosive Treatement | Phosphating (7 Tanks) | Phosphating (7 Tanks) | Phosphating (7 Tanks) | Phosphating (7 Tanks) | Phosphating (7 Tanks) |
Painting | Epoxy Polyster Pow. Coat | Epoxy Polyster Pow. Coat | Epoxy Polyster Pow. Coat. | Epoxy Polyster Pow.Coat. | Epoxy Polyster Pow. Coat. |
Tare Weight | 1 KGS | 1.4 KGS | 2.3 KGS | 3 KGS | 5.1 KGS |
Gross Weight | 2 KGS | 3.4 KGS | 6.3 KGS | 9 KGS | 14.1 KGS |
Multi-Purpose Protection
Effectively tackles fires involving solids (wood, paper),
flammable liquids (petrol, oils), and gases (LPG, propane).
Stored Pressure System
Ensures constant readiness for emergencies with easy-to-use
functionality.
High-Quality Dry Powder Agent
Suppresses flames rapidly, cutting off oxygen and
preventing re-ignition.
Durable Construction
Made with robust materials to withstand tough conditions and
ensure longevity.
User-Friendly Design
Lightweight, portable, and equipped with clear operating
instructions for quick response.
The Dry Powder Stored Pressure Type Fire Extinguisher is ideal for:
Don't wait for a fire emergency to act—be prepared! Our Dry Powder Stored Pressure Type Fire Extinguisher offers reliable protection for your home, office, or business.
